01/Full Stack · Microservices/University Project/Jan — May 2026

OpenCare

A personal health record platform that lets patients query their own medical data through natural language.

Overview

A three-service system where patients upload, redact, and semantically query their own medical records through an AI-powered chat interface.

Built for a university database systems course, OpenCare implements the PerHL (Personal Health Library) research architecture — pairing a structured PostgreSQL record store with a vector search layer and a streaming Gemini integration that grounds every answer in the patient's actual health data.

Role

Full Stack Developer
System Architect
ML Integration

Context

University Course Project
Team Development

Timeline

Jan 2026 — May 2026

Architecture

3 services
Monorepo + submodules

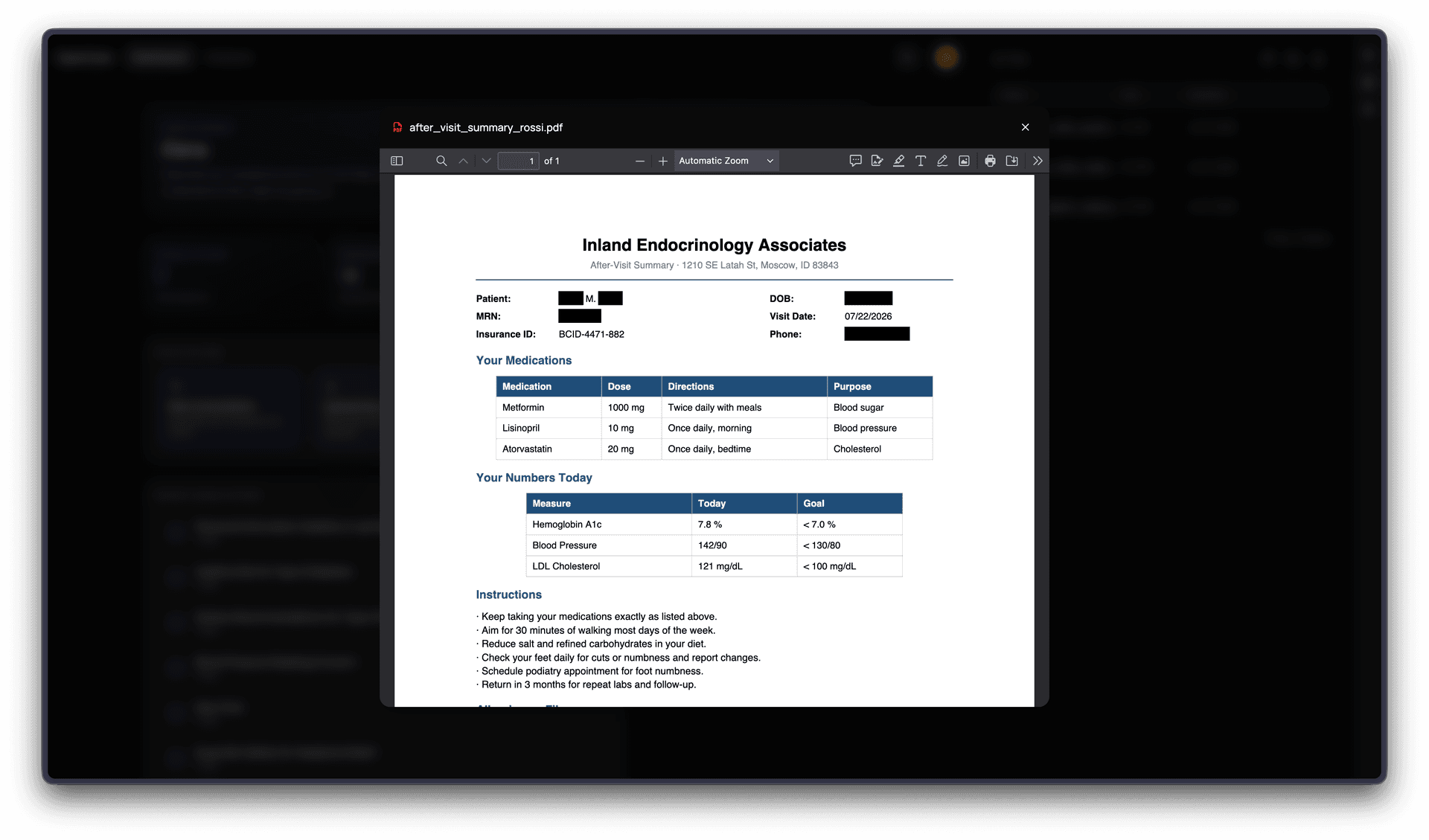

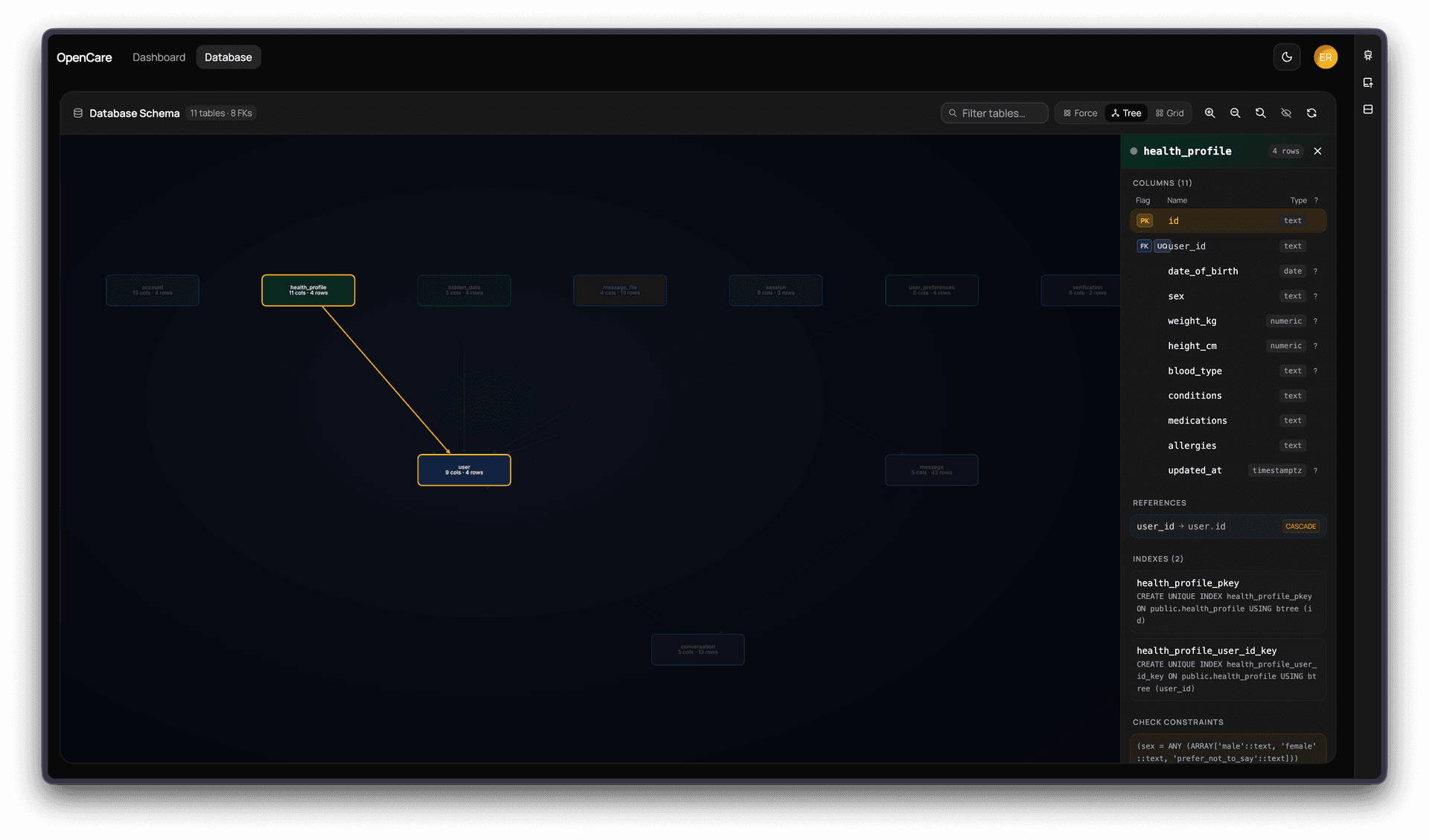

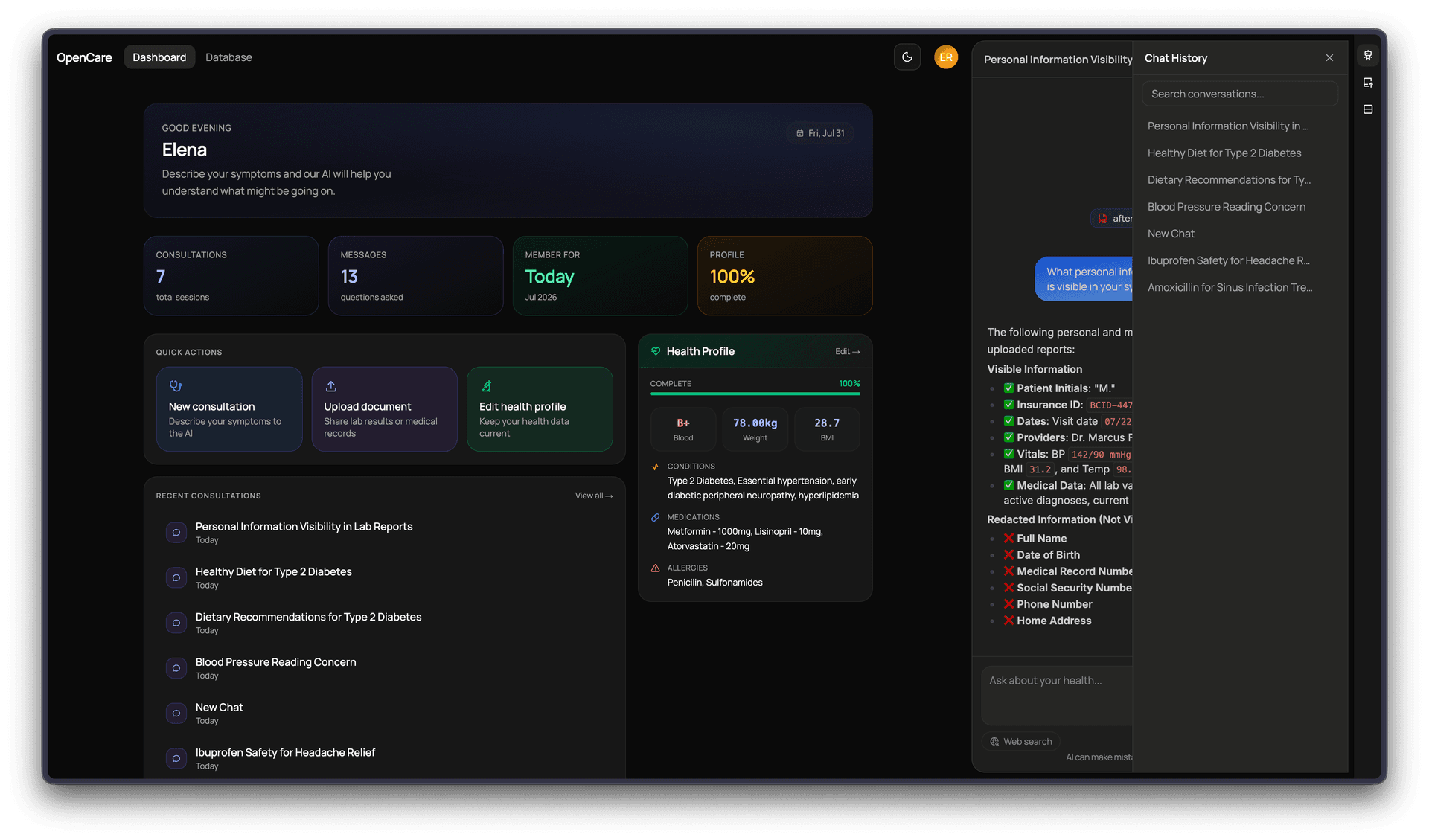

Dashboard with AI chat window openPDF viewer with redacted personal informationInteractive database schema ER diagram

Document Pipeline

From upload to AI answer — every step secured

01

Upload

Patient uploads a PDF, image, or plain text file (up to 50 MB) via the React SPA.

Frontend

02

Redact

Flask microservice uses PyMuPDF to locate and black-out specified terms — stripping PII before anything persists.

Python Service

03

Store

Redacted file is written to MinIO object storage. Pre-signed URLs are generated for secure, time-limited downloads.

MinIO / S3

04

Embed

Document text is chunked and passed to a Hugging Face embedding model. Vectors are stored in PostgreSQL via the pgvector extension.

Hugging Face

05

Query

When a patient sends a message, the AI retrieves semantically similar document chunks alongside their structured health profile to ground the response.

Google Gemini

06

Stream

Gemini's response streams token-by-token through the Express server and renders progressively in the chat interface.

Express → React

Services

Three independent services, one platform

App

React SPA

Patient-facing interface built with React 19 and Vite. Handles AI chat, health profile management, file uploads, and a live interactive ER diagram of the database schema.

  • React 19
  • Vite 8
  • TypeScript
  • TailwindCSS v4
  • shadcn/ui
  • Cytoscape.js
  • Better Auth

Server

Express API

Node.js backend that orchestrates authentication, AI conversations, file storage, and all database operations. The single integration point between the frontend and all external services.

  • Express 5
  • TypeScript
  • PostgreSQL + pgvector
  • Google Gemini
  • Hugging Face
  • MinIO
  • Better Auth
  • Tavily

Python Service

Redaction Microservice

Stateless Flask microservice with a single responsibility: receive a file and a list of terms, redact all matches using PyMuPDF, and return the sanitized document. API-key secured.

  • Flask
  • Python
  • PyMuPDF
  • MinIO SDK

Features

What the platform does

AI & Conversation

01

Health-aware AI chat

Every conversation is grounded in the patient's own data — demographics, medications, allergies, blood type, and conditions are injected into the Gemini context window automatically. The AI knows who it's talking to.

02

Streaming responses

Gemini's output is streamed token-by-token through the Express server using server-sent events, rendering progressively in the chat UI so patients see the response being written in real time rather than waiting for a complete answer.

03

Web search grounding

Optionally, the AI can call Tavily to fetch live web results and cite them alongside the patient's own health data — useful for questions about drug interactions, recent guidelines, or general medical context.

04

File attachments in chat

Patients can attach documents directly in the chat window. Files go through the full redaction → storage → embedding pipeline before the AI references their content in its reply.

05

Auto-titled conversations

After the first exchange, the server asks Gemini to generate a short descriptive title for the conversation and persists it — keeping the chat history organized without any patient effort.

Document Pipeline

06

PII redaction before storage

No sensitive term ever touches the object store unredacted. The Python microservice intercepts every upload, processes it with PyMuPDF to black out the specified terms, and only the sanitized version is forwarded to MinIO.

07

Semantic search via pgvector

Document chunks are embedded with a Hugging Face model and stored as vector columns in PostgreSQL using the pgvector extension. At query time, cosine similarity search retrieves the most relevant chunks to include in the AI's context.

08

S3-compatible file storage

MinIO provides S3-compatible object storage for all patient documents. Files are organized into per-user folders; downloads use pre-signed URLs so the frontend never needs direct storage credentials.

Health Profile & Data

09

Structured health records

Patients maintain a profile covering date of birth, blood type, height, weight, current medications, known allergies, and chronic conditions. This structured data is always available to the AI alongside any uploaded documents.

10

Multi-provider authentication

Better Auth handles session management with support for email/password and Google OAuth. Multi-factor authentication is available. Patients can update their email and manage active sessions from the settings page.

11

AI preference settings

Patients can tune how the AI behaves — adjusting response style, verbosity, and whether web search grounding is active — from the settings page, without touching any configuration files.

Developer Experience

12

Live database schema visualization

A dedicated /database route fetches the full live schema — every table, column, primary key, foreign key, and unique constraint — from the backend and renders it as an interactive entity-relationship diagram using Cytoscape.js.

13

Docker Compose orchestration

PostgreSQL, pgvector, MinIO, and all three application services are wired together in a single Compose file. The opencare-platform monorepo ties the submodules together so the entire system boots with one command.

Full Tech Stack

Frontend

  • React 19
  • Vite 8
  • TypeScript
  • TailwindCSS v4
  • shadcn/ui
  • Cytoscape.js

Backend

  • Express 5
  • Node.js
  • TypeScript
  • Better Auth

AI / ML

  • Google Gemini
  • Hugging Face
  • Tavily
  • pgvector

Data & Infra

  • PostgreSQL
  • MinIO / S3
  • Flask
  • PyMuPDF
  • Docker
